Tooling Status

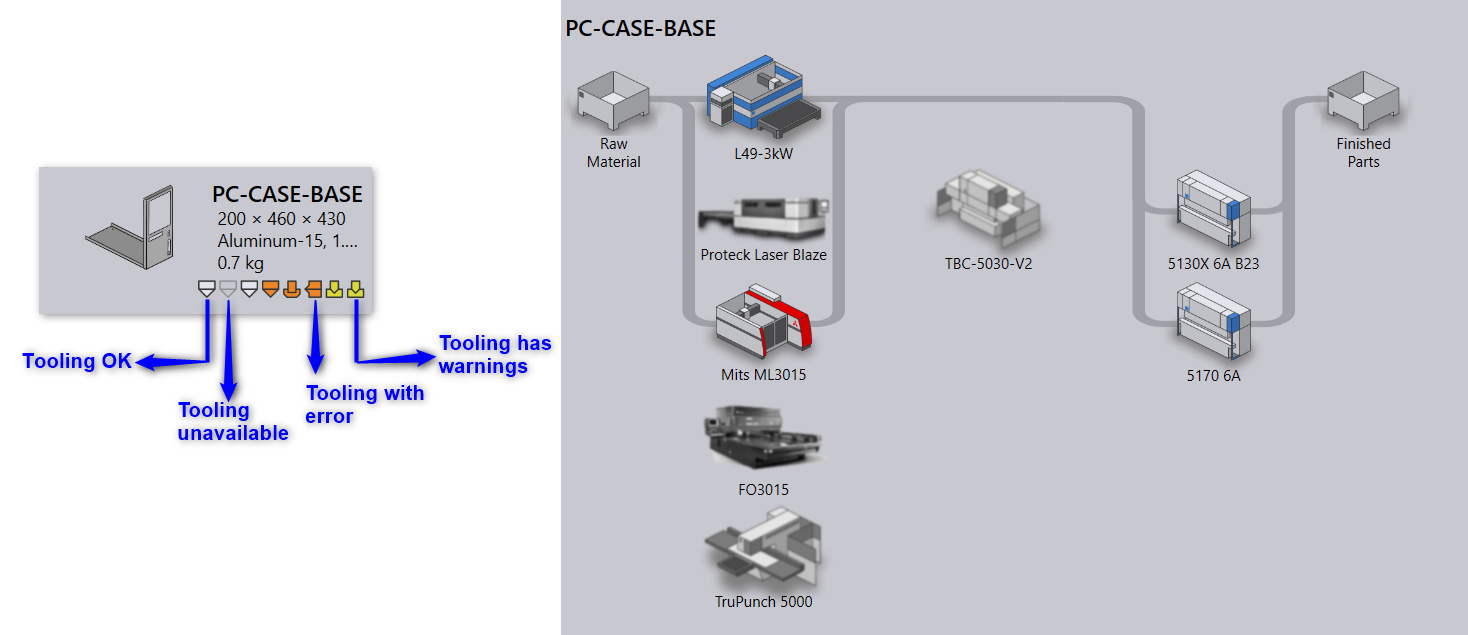

Part tiles display tooling status of the part for all available Praxis machines. The sections below display various icons and icon-colors used to indicate the machine technology and tooling status.
Technology Legends
| Symbol | Description |
|---|---|
|
Laser Machine |
|
Punch Machine |
|
Panel Bending Machine |
|
Bending Machine |
Status Legends
| Symbol | Description |
|---|---|
|
Tooling is OK |
|
NC is generated but tooling has warnings |
|
Tooling has errors |
|
Part tooling is not available for this machine |
